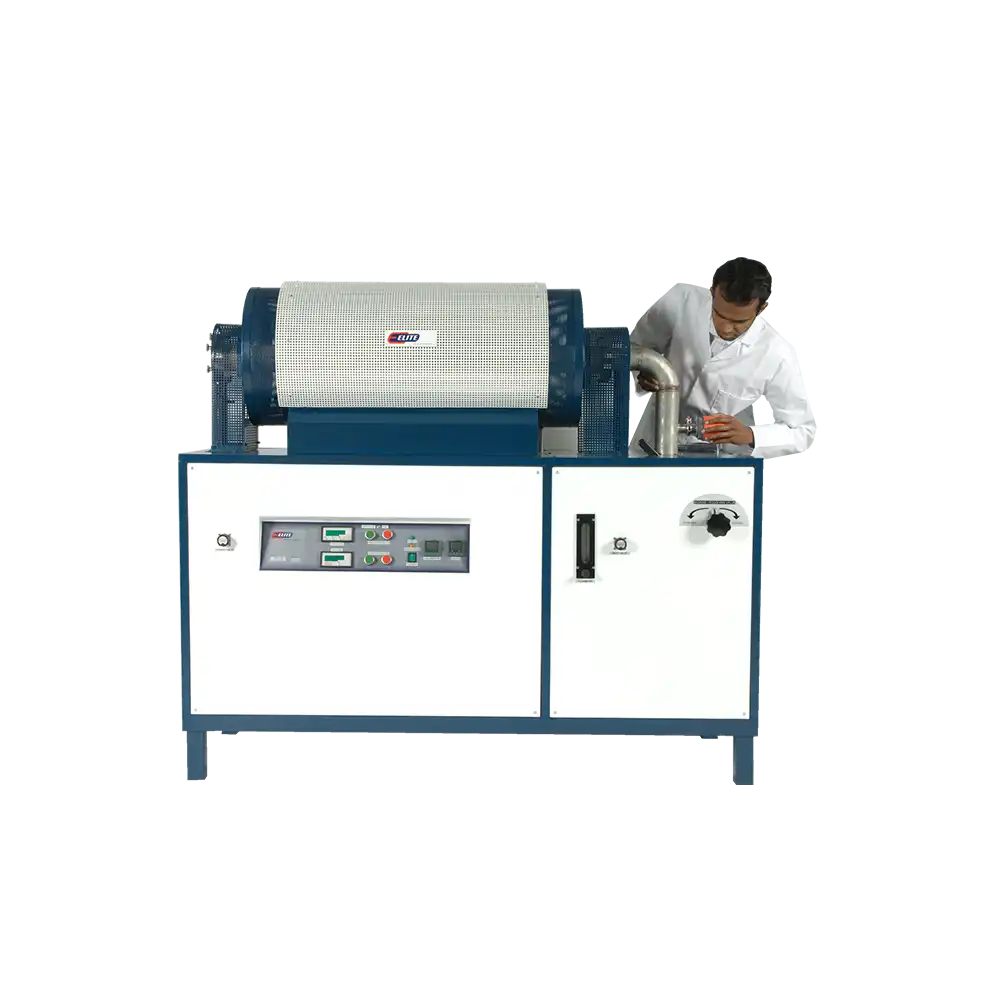

The TSHvc15 is a horizontal tube furnace equipped with integral vacuum equipment. The Low Vacuum model achieves an ultimate vacuum of better than 1 x 10-2 mbar, while the High Vacuum model features a turbomolecular pump, reaching a vacuum level of 1 x 10-5 mbar or better, with a clean, empty work tube.
Top grade silicon carbide rods mounted parallel with and equispaced around the furnace tube.
| Model | Max Temp (°C) |
Max Cont (°C) |
Tube Diameter (ID) (mm) |
Heated Length (mm) |
Nominal Power (kW) |
Volts | Phase | Ext Dimensions (mm) HxWxD |
Net Wt. (kg) |
Radiation Screens Ceramic |
Radiation Screens Metalic |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TSHvc15/50/450-HV | 1500 | 1450 | 50 | 450 | 5.8 | 230 | 1 | 1500x1700x700 | 195 | ? | ? |
| TSHvc15/50/450-LV | 1500 | 1450 | 50 | 450 | 5.8 | 230 | 1 | 1500x1700x700 | 195 | ? | ? |
| TSHvc15/75/450-HV | 1500 | 1450 | 75 | 450 | 5.8 | 230 | 1 | 1500x1700x700 | 195 | ? | ? |
| TSHvc15/75/450-LV | 1500 | 1450 | 75 | 450 | 5.8 | 230 | 1 | 1500x1700x700 | 195 | ? | ? |
| TSHvc15/75/600-HV | 1500 | 1450 | 75 | 600 | 5.8 | 230 | 1 | 1500x1850x700 | 195 | ? | ? |
| TSHvc15/75/600-LV | 1500 | 1450 | 75 | 600 | 5.8 | 230 | 1 | 1500x1850x700 | 195 | ? | ? |
Note 1:
The work tube is not supplied as an integral part of the furnace and therefore needs to be purchased with the order as it is an essential accessory.
Custom Designed For all Tube furnaces, Elite Thermal manufactures custom-built furnaces. Please write to us with your requirement.
