Model: SYVS 200

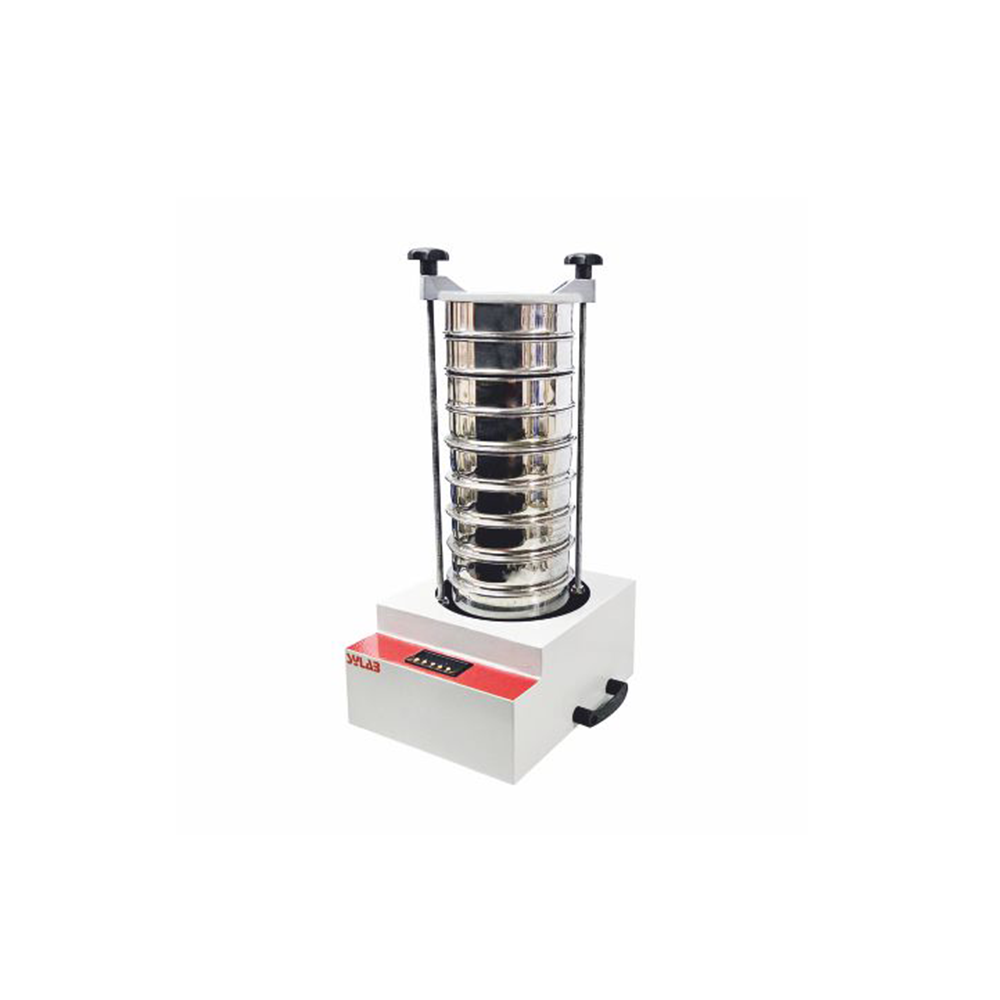

Sylab's Vibratory Sieve Shaker is a sophisticated laboratory instrument designed for precise particle size analysis using a series of standard test sieves. This advanced sieve shaker facilitates accurate separation and sizing of particles, essential for quality control and research applications.
The instrument works by generating controlled, three-dimensional vibrations that move a stack of test sieves in a consistent and efficient pattern.
Sylab's Vibratory Sieve Shaker is engineered for precise dry and wet sieving, enabling quantitative distribution analysis of solid powders and effective separation of sample quantities of up to 3 kg. With a measurement range from 20 microns to 25 mm, this shaker supports test sieves with diameters of 100, 150, 200, and 203 mm.
| Measuring range | 20 micron to 25 mm |
| Max.Sample quantity | 3Kg |
| Capacity | Compatible with up to 8 test sieves of 200 mm diameter, along with a receiver & lid. Sieves with diameters of 100, 150, and 203 mm are also supported. |
| Sieve motion | 3D electromagnetic |
| Suitable for dry & wet sieving | Yes |
| Amplitude | 0 – 3 mm (max amplitude depends on load), set digitally 0–9 steps |
| Timer | Digital – 0 sec to 99 min 59 sec |
| Interval | Programmable function |
| Memory Function | 10 programs |
| Dimensions | 323 x 408 x 215 (W x D x H in mm) |
