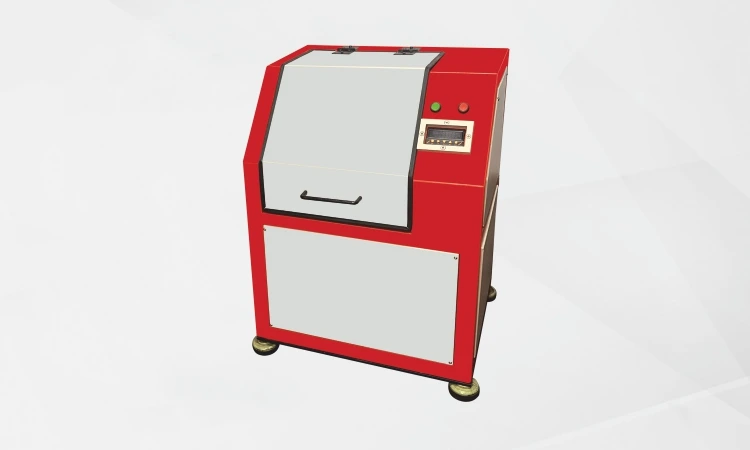

What is a Vibratory Cup Mill?
A Vibratory Cup Mill is a high-performance grinding instrument designed for fine and uniform pulverization of solid samples. It's essential in laboratories and industries where precise sample preparation determines the accuracy of analytical results.
Using vibrational impact grinding, the machine rapidly reduces hard, brittle, or abrasive materials such as minerals, ores, cement clinker, ceramics, and slag into fine powders suitable for analysis.
This makes it an indispensable tool in XRF (X-ray Fluorescence), XRD (X-ray Diffraction), and ICP (Inductively Coupled Plasma) laboratories for analytical testing.
How Does a Vibratory Cup Mill Work?
The working principle of a vibratory cup mill is based on high-frequency vibrational energy that pulverizes material through impact and friction forces.
- Sample Loading
The sample is placed in a robust grinding cup, along with a ring and puck made of durable materials like tungsten carbide, hardened steel, or agate.
- Vibration & Motion
The grinding set is securely clamped inside the machine. Once started, the motor generates intense three-dimensional vibrations-rotational, oscillating, and horizontal movements.
- Grinding Action
These vibrations cause the ring and puck to move rapidly within the cup, crushing the sample through repeated impacts and frictional forces.
- Final Powder
Within 1-2 minutes, the material is reduced to fine powder, often reaching micron-level fineness, ideal for analytical precision.
Key Features of a Vibratory Cup Mill
- Rapid grinding - typically under 2 minutes
- Achieves micron or sub-micron fineness (<75 µm)
- Dust-free and fully enclosed operation
- Programmable timer for consistent results
- Interlocked safety system to prevent accidents
- Available with different grinding set materials to minimize contamination
Applications of Vibratory Cup Mills
Vibratory cup mills are widely used in laboratory testing and industrial quality control across diverse sectors:
- Cement & Building Materials: Grinding clinker and additives for quality testing
- Mining & Geology: Pulverizing ore and mineral samples for compositional analysis
- Metallurgy: Preparing alloy and metal samples for spectroscopic testing
- Ceramics & Glass: Fine grinding of non-metallic materials
- Soil & Environmental Testing: Pulverizing soil and sediments for trace element analysis
Benefits of Using a Vibratory Cup Mill
- Consistent Particle Size: Ensures reproducible analytical results
- Fast & Efficient: Achieves fine grinding within seconds
- Minimal Cross-Contamination: Select grinding materials suitable for the sample type
- Compact & Safe: Small footprint with dust-sealed chamber
- Low Maintenance: Simple design and durable components
- Energy Efficient: Short grinding cycles save time and power
Grinding Set Material Options
Different materials can be used depending on the sample's hardness and contamination sensitivity:
| Material Type | Best For | Properties |
|---|---|---|
| Tungsten Carbide | Hard and abrasive materials | Extreme durability, long life |
| Hardened Steel | Minerals and general lab use | Cost-effective, strong impact |
| Zirconia / Agate | Non-metallic or contamination-sensitive samples | Chemically inert and clean |
Maintenance Tips for Longevity
To ensure long-term, precise performance:
- Clean the cup, puck, and ring after each use to prevent contamination.
- Inspect wear parts regularly and replace when necessary.
- Lubricate moving components as per manufacturer instructions.
- Verify tight clamping before operation to avoid imbalance.
- Avoid overloading the grinding cup to maintain efficiency.
Conclusion
A Vibratory Cup Mill is a compact yet powerful grinding tool that plays a vital role in sample preparation for analytical and quality testing.
Its ability to produce fine, uniform powders with minimal contamination makes it a trusted choice across cement, mining, metallurgy, and laboratory sectors.
Fast, reliable, and efficient-this machine ensures your analytical results are as accurate as possible, every single time.
