Overview

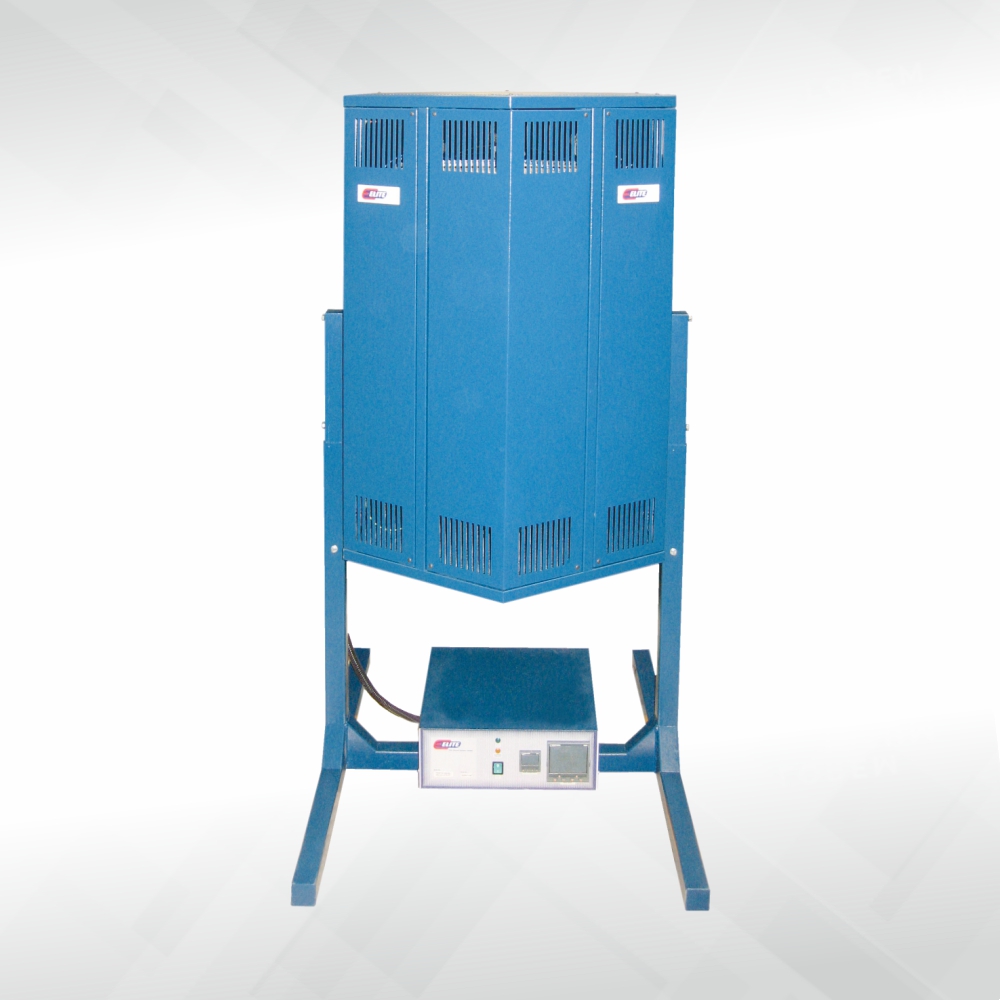

The TSV12-SY furnace is a vertical-mounted tube furnace with a separate control console, ideal for most general laboratory thermal processing applications.

Heating Elements

Special arrangement via resistance wire wound onto a ceramic worktube which is an integral part of the furnace gives optimum temperature uniformity throughout the furnace.

Highlights

Standard Features
Optional Features
Downloads

The furnace design incorporates an integral elemental tube.
Protective outer mesh covers for improved operator safety.
Low thermal mass insulation is used throughout for rapid response rates and maximum efficiency and stability.
For aggressive processes, a separate work tube is recommended to minimise the risk of contaminating the elemental work tube.
A rugged metal sheathed control thermocouple is protected from accidental damage and allows full use of work tube bore.
'N' Type thermocouple is used in these furnaces.
These models are supplied as separate control console remote from furnace, separated by two meters of flexible inter-connecting cable.
ELITE PID controller offering 8 programs with 8 segments each.

Work tubes of various materials, lengths and diameters for use in the furnace
The work tubes are available for containment of atmosphere or protection against process contaminants.
A variety of triple flange gas tight end seals for work tubes to allow processing under vacuum or gas atmospheres.
Multi segment, multi program storage controller
Over temperature protection controller.
Thermal Radiation Plugs/Screens/Shields.

Single Zone Vertical Tube Furnaces - TSV12

Specifications

Model	Max Temp (°C)	Max Cont (°C)	Tube Diameter (ID) (mm)	Heated Length (mm)	Max Power (kW)	Volts	Phase	External Dimensions (mm) H x W x D	Net Wt. (kg)	Additional Worktubes (ID x Length) (mm) Short	Additional Worktubes (ID x Length) (mm) Long
TSV12/25/250-SY	1200	1150	25	250	0.8	230	1	560x335x315	11	16x350	16x500
TSV12/25/500-SY	1200	1150	25	500	1.2	230	1	560x585x315	16	16x600	16x750
TSV12/38/250-SY	1200	1150	38	250	1.0	230	1	560x335x315	12	25x350	25x500
TSV12/38/500-SY	1200	1150	38	500	1.7	230	1	560x585x315	16	25x600	25x750
TSV12/50/300-SY	1200	1150	50	300	1.7	230	1	560x385x315	14	38x400	38x600
TSV12/50/610-SY	1200	1150	50	610	2.0	230	1	620x700x330	21	38x700	38x900
TSV12/75/610-SY	1200	1150	75	610	2.8	230	1	620x700x330	26	60x900	60x1050
TSV12/75/750-SY	1200	1150	75	750	3.0	230	1	620x840x330	30	60x900	60x1050
TSV12/100/940-SY	1200	1150	100	940	4.3	230	1	650x1025x370	45	75x1050	75x1500
